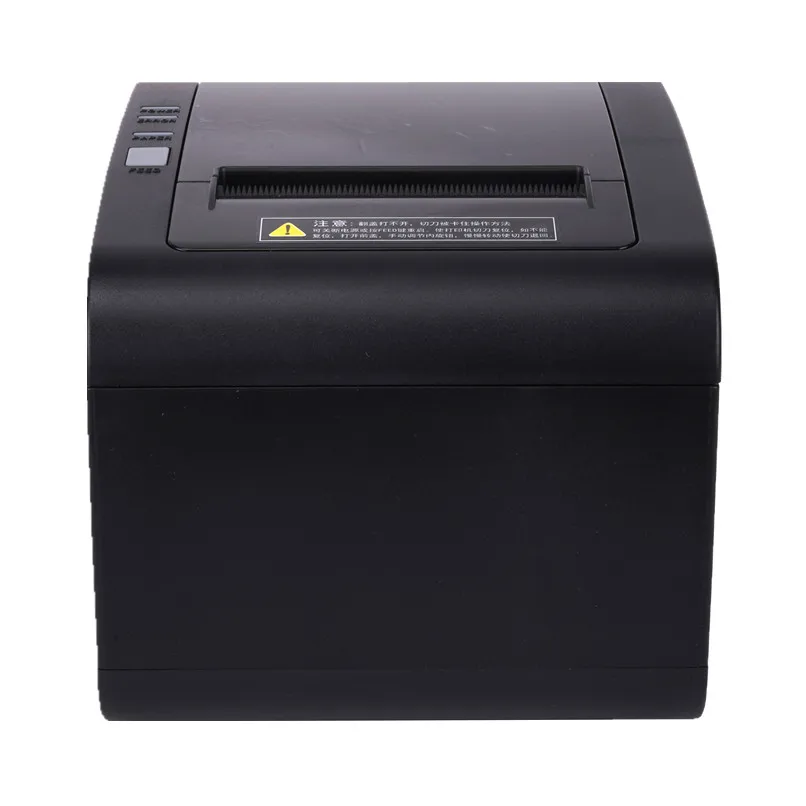

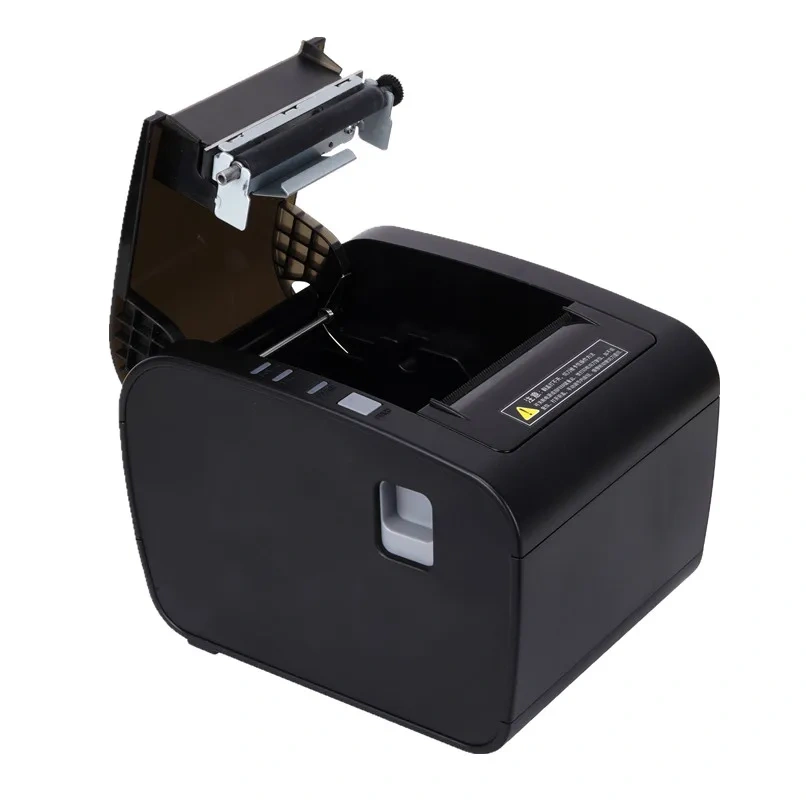

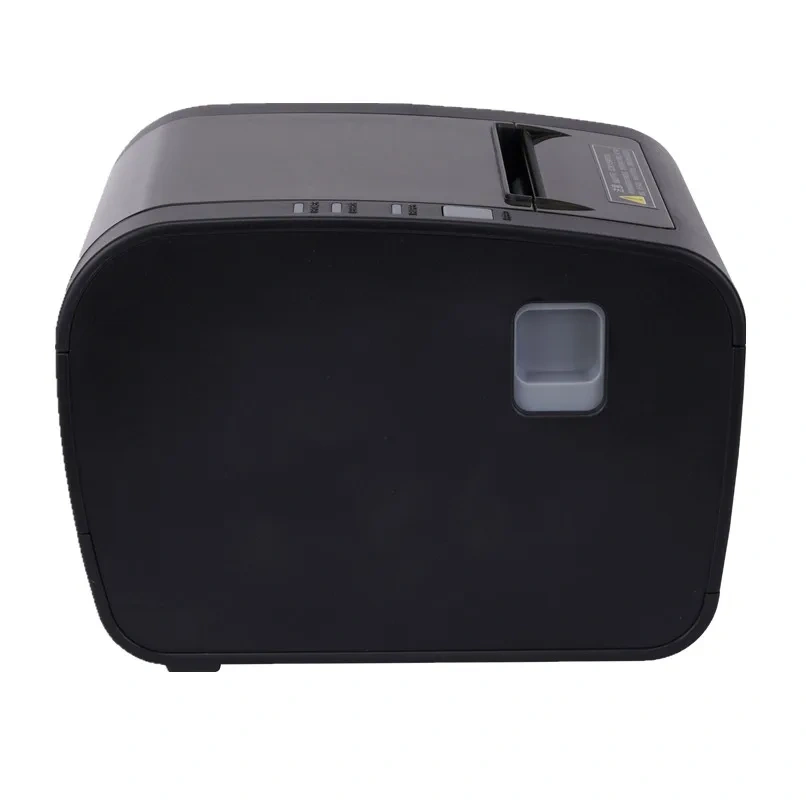

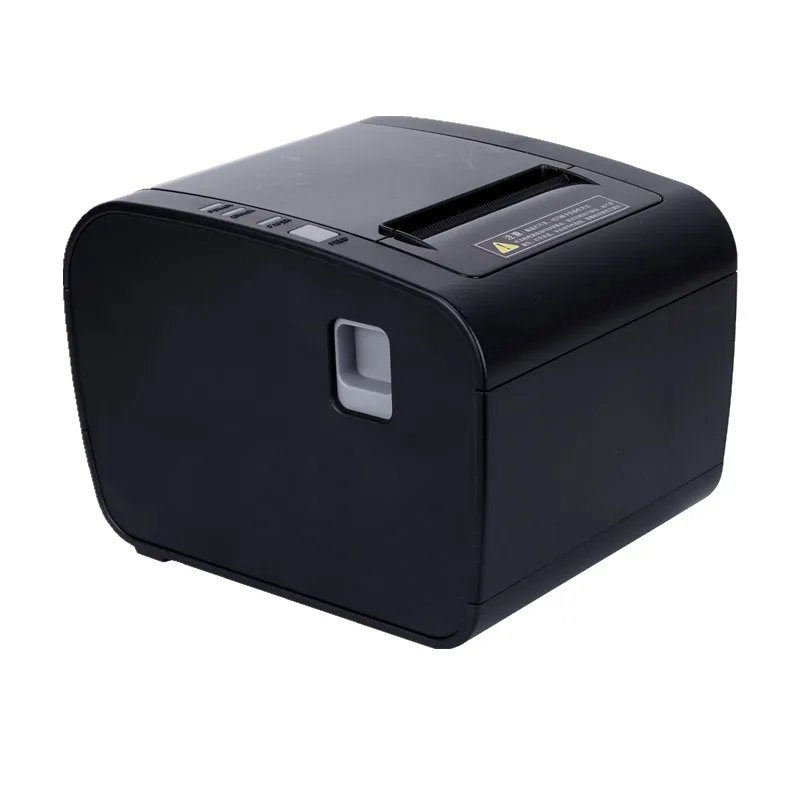

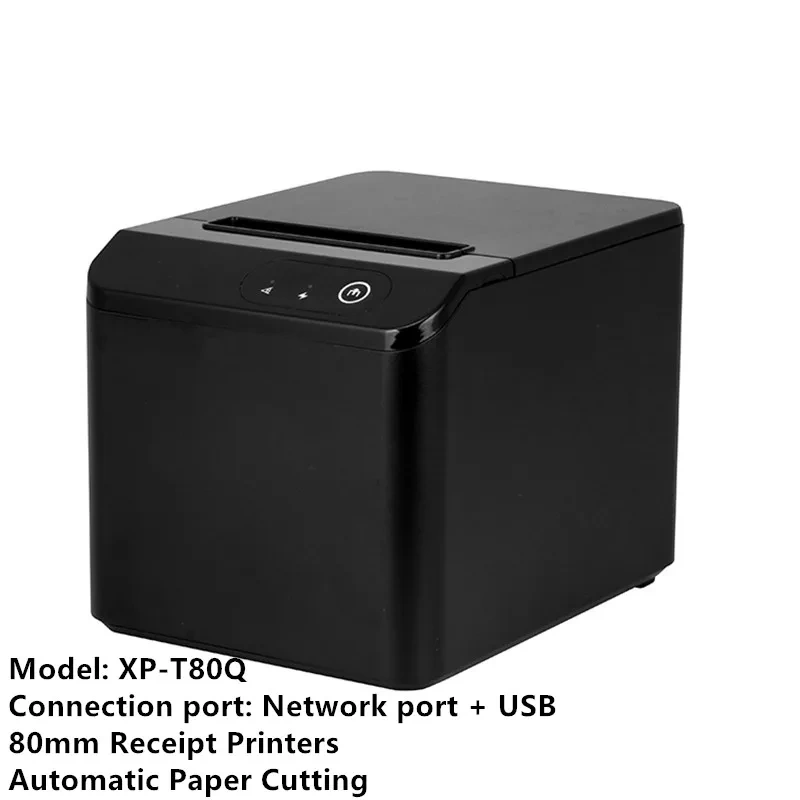

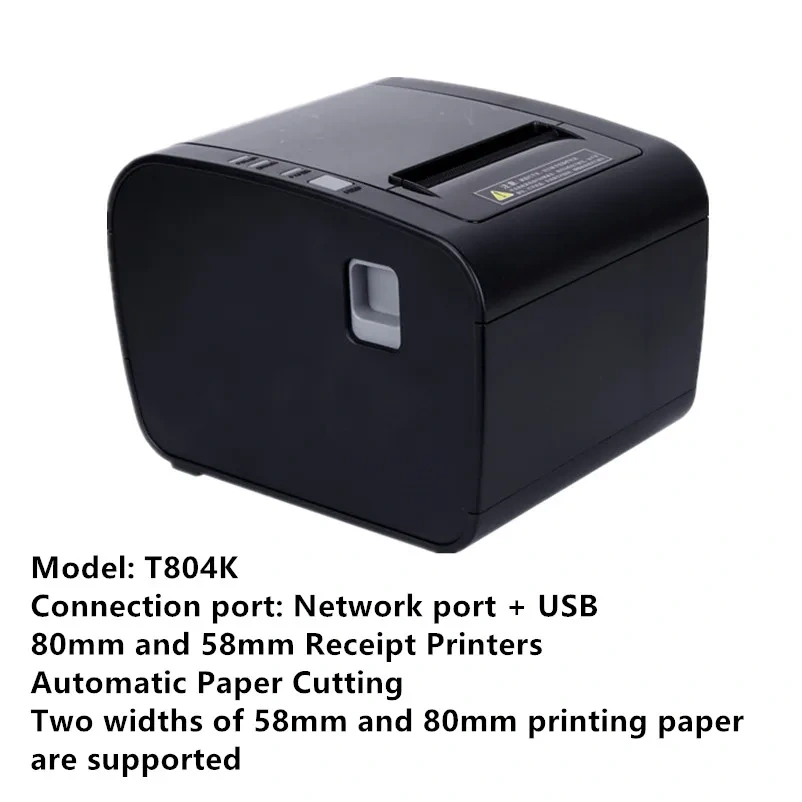

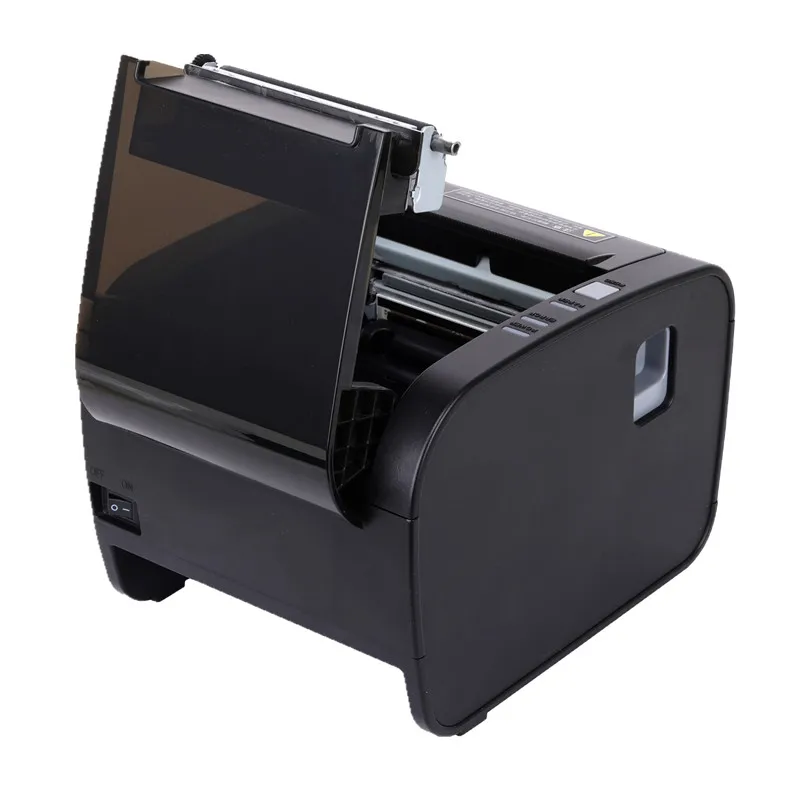

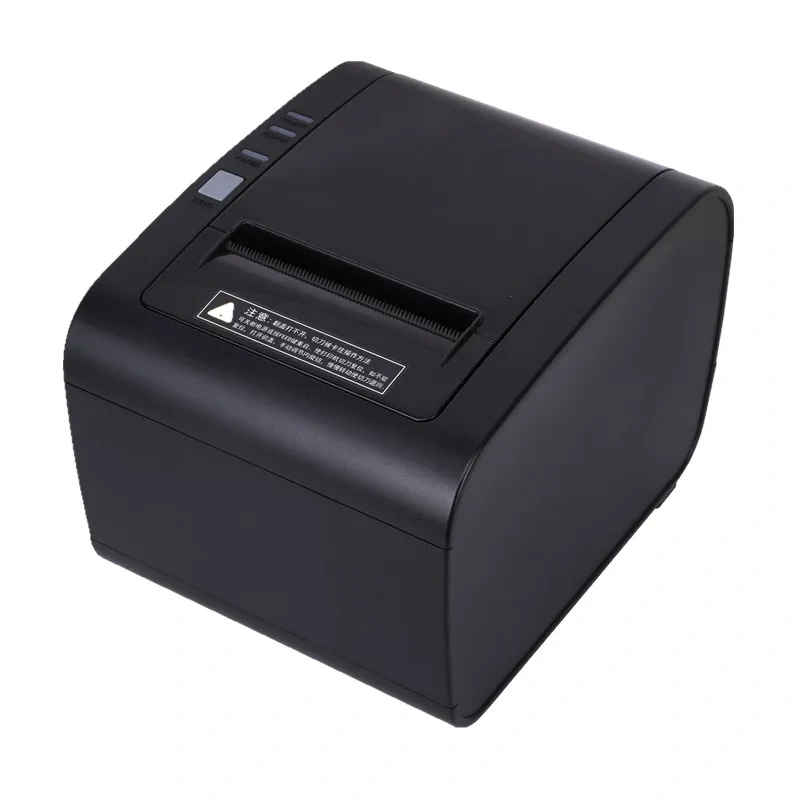

Two Print Widths Are Supported 80mm 58mm Receipt Printer Thermal Bill Print Automatic Cutting
driver support system: win 7 / Win 8 / Win 8.1 / Win 10 / Win XP / Win 2000 / Win 2003 / Win Vista / Linux
Support automatic paper cutting function
Support LOGO trademark print
Support bar code print
Supports QR code print
Support more than 100 languages worldwide text print
Functional characteristics
--Support for a variety of international languages and scripts
-- Support print job tips and error alarm function
-- driving high-speed download and print mode, supports Linux system drive
--Support black mark detection function
--Increase avoid "missing orders" function
--Supports Ethernet port, serial port monitoring function
--download store and print Logo trademark
--Support 256K Bytes NV Logo download store and print Logo trademark
Technical parameters:
Print
Printing method Direct thermal line
Print width 80mm paper width
Point density 576 dots / line, or 512 dots / line
Printing speed 160 mm / sec
Interface Type: USB and Ethernet port Need to choose one of them
Paper 79.5 ± 0.5 mm × φ83 mm
Line spacing 3.75 mm (available command to adjust line spacing)
Number of columns
80mm paper: 80mm Paper: Font A - 42 columns or 48 / Font B - 56 columns or 64 / Jane, Traditional --21 column or 24
Character size
ANK character, Font A: 1.5 × 3.0mm (12 × 24 points)
Font B: 1.1 × 2.1mm (9 × 17 dots)
Simplified / Traditional: 3.0 × 3.0mm (24 × 24 points)
Barcode characters
Extended character table PC347 (Standard Europe), Katakana,
PC850 (Multilingual), PC860 (Portuguese),
PC863 (Canadian-French), PC865 (Nordic), West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866 (Cyrillic # 2), PC852 (Latin2), PC858, IranII, Latvian, Arabic, PT151 (1251)
Barcode Type UPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) /
CODE39 / ITF / CODABAR / CODE93 / CODE128
Cutter
semi-automatic cutter cut
Buffer
Input buffer 64k bytes
NV Flash 256k bytes
Power supply
Power Adapter Input: AC 110V / 220V, 50 ~ 60Hz
Power Output: DC 24V / 2.5A
Cash Drawer Output DC 24V / 1A
Physical Characteristics
Weight 1.3 kg
Dimensions 180 × 142 × 130 mm (L × W × H)
Environmental Requirements
Working temperature: 0 ~ 45 , Humidity: 10 ~ 80%
Storage temperature: -10 ~ 60 , Humidity: 10 ~ 90% (non-condensing)
Lifetime
Cutter life one million times
