new 58mm 2Inch Standby Time 5~7 days Bluetooth Wireless Mobile 58mm Mini Thermal Receipt Printer Portable
Chapter One: basic characteristics

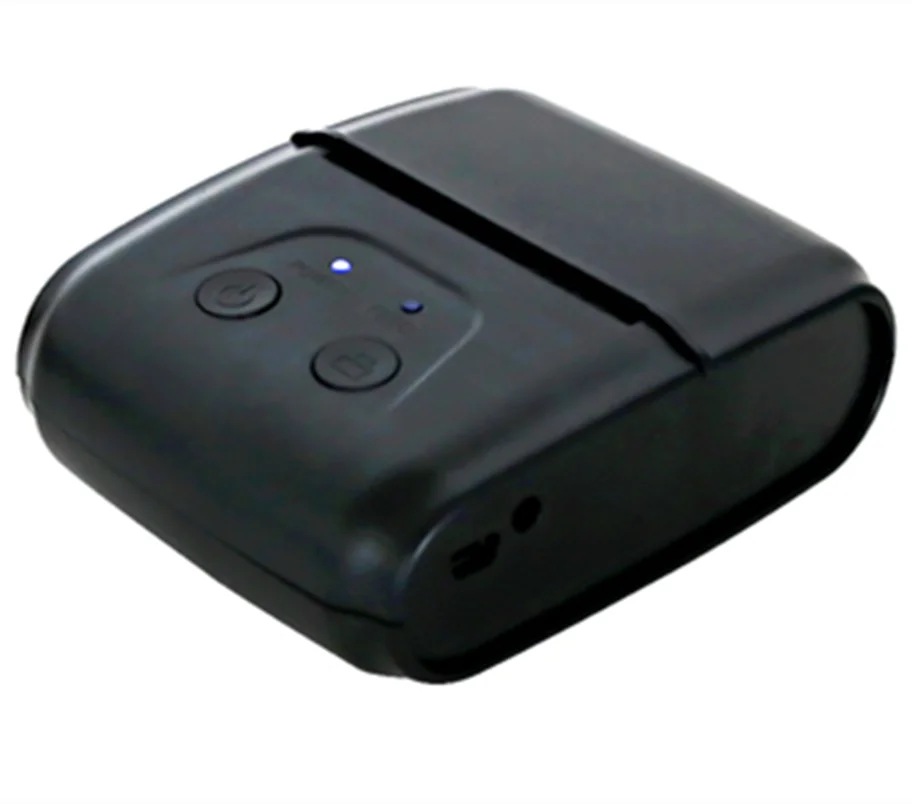

Name: Bluetooth Thermal Receipt Printer
Model: P200
Suitable for supporting the use of mobile products, suitable for outdoor operating environment.
Products with small size, light weight, reliable performance, connectivity is simple, easy to use features
The main scope are: mobile police system, tobacco distribution system, meter reading system utilities, mobile office / mobile logistics systems, portable instrumentation / detection equipment equipment.
Low operating costs (no ribbons, ink cartridges)
two. Technical Parameters
Print method: Thermal line printing
Print speed: 70mm / s (max)
Print head life: 100 million pulses / dot, or 100km
Resolution: 203dpi (8dot / mm)
Effective print width: 48mm (384 points)
Available paper width: 58 ± 01mm
Paper warehouse capacity: Diameter φ≤40mm
Power: Rechargeable lithium batteries
Battery Specifications: 2000 mAh
Charging: External charger
Power Adapter Specifications: 9V-2A
GB2312 standard font using font, containing 12 * 24ASCII, 9 * 17ASCII character
Command emulation ESC / POS command set section
Print Parameters: Support Download Logo trademark printing supports printing one-dimensional bar codes, two-dimensional bar
Barcode types:
One-dimensional code: UPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) / CODE39 / ITF / CODABAR / CODE93 / CODE128
Two-dimensional code: QR CODE
Communication Interface: standard RS232, USB, Bluetooth 2.0 / Bluetooth 4.0 (optional)
Driver Win200 / Win2003 / Win2000 / Win7 / WinXP / VISTA / Win 8 / Win 10 / LINUX
Volume: 102X78X46 mm




Plugs can be in accordance to each country's standard, English manual
